Cam chain
No. Part No. Part name NT400J NT400K NT400L NT650J NT650K NT650L1 14322-MR1-000 Sprocket, cam, (40T) 2 2 2 2 2 22 14401-MN1-671 Chain, cam, (118L) 2 2 2 2 2 23 14510-MR1-000 Tensioner, cam chain, COMP 2 2 2 2 2 24 14516-MG8-003 Spring. 2 2 2 2 2 25 14522-MR1-000 Guide, Cam chain. 2 2 - 2 2 -5 14522-MV1-000 Guide, Cam chain. - - 2 - - 26 14531-MN8-000 Rubber, front cushion. 1 1 1 1 1 17 14532-MN8-000 Rubber, rear cushion. 1 1 1 1 1 18 14623-MF5-000 Plate A 1 1 - 1 1 - 8 14623-MV1-000 Plate A - - 1 - - 19 14624-MF5-000 Plate B 1 1 - 1 1 -9 14624-MN8-910 Plate B - - 1 - - 110 90021-KE9-000 Bolt, special, 6MM 4 4 4 4 4 411 90086-MF5-000 Bolt, 7X13 4 4 4 4 4 412 90441-706-000 Washer, 6MM 4 4 4 4 4 413 95701-06014-00 Bolt, flange, 6X14 1 1 - 1 1 -13 95701-06016-00 Bolt, flange, 6X16 - - 1 - - 114 95701-06016-00 Bolt, flange, 6X16 1 1 1 1 1 1

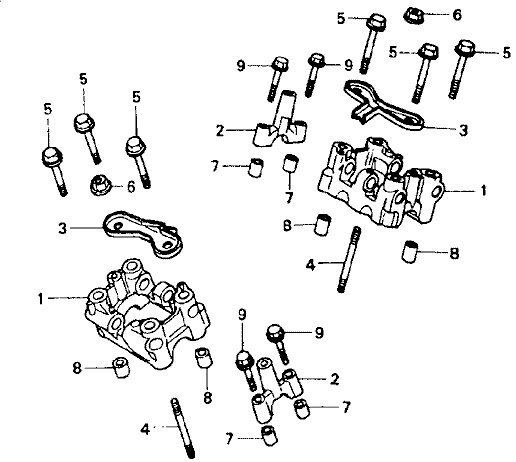

CAM HOLDER
No. Part No. Part name NT400J NT400K NT400L NT650J NT650K NT650L1 12223-MF5-030 Holder, rear cam shaft. 2 2 - 2 2 -1 12223-MV1-000 Holder, rear cam shaft. - - 2 - - 22 12225-MF5-000 Holder. 2 2 2 2 2 23 12226-MF5-000 Plate. 2 2 2 2 2 24 90013-MF5-000 Bolt, stud, 8X50 2 2 2 2 2 25 90066-MC7-000 Bolt, flange, 5X68 6 6 6 6 6 66 94050-08080 Nut, flange, 8MM 2 2 2 2 2 27 94301-08140 Pin, dowel, 8X14 4 4 4 4 4 48 94301-10160 Pin, dowel, 8X16 4 4 4 4 4 49 96001-06040-00 Bolt, flange, 6X40 4 4 4 4 4 4
CLUTCH
No. Part No. Part name NT400J NT400K NT400L NT650J NT650K NT650L 1st machine Last machine1 15131-MR1-000 Sprocket, (31T) 1 1 1 1 1 1 2 22100-KW0-000 Outer COMP., Clutch. 1 1 1 - - - 2 22100-MN8-000 Outer COMP., Clutch. - - - 1 1 1 3 22116-MF5-000 Collar, primary driven. 1 1 1 1 1 1 4 22120-MF5-000 Centre COMP. Clutch. 1 - - - - - 4 22120-MF5-000 Centre COMP. Clutch. - 1 - - - - 4 22120-MF5-010 Centre COMP. Clutch. - 1 - - - - ---------- 11023084 22120-MF5-010 Centre COMP. Clutch. - - 1 - - - 1102309 4 22120-MM9-010 Centre COMP. Clutch. - - - 1 1 1 5 22125-MN8-000 Seat, judder spring. 1 1 1 1 1 1 6 22201-MN8-000 Disk, Clutch friction. 5 - - 7 - - 6 22201-MN8-700 Disk, Clutch friction - 5 5 - 7 7 7 22201-302-010 Disk B, Clutch friction 1 1 1 1 1 1 8 22350-KW0-000 Plate, Clutch press. 1 1 1 - - - 8 22350-MR1-000 Plate, Clutch press. - - - 1 1 1 9 22361-MR1-000 Plate, Clutch lifter. 1 1 1 1 1 1 10 22401-ML7-000 Spring, clutch. 4 4 4 4 4 4 11 22402-435-000 Spring, judder. 1 1 1 1 1 1 12 22847-415-000 Rod, clutch lifter. 1 1 1 1 1 1 13 23103-KW0-000 Gear, (34T) 1 - - - - - ---------- 105238513 23103-KW0-010 Gear, (34T) 1 - - - - - 1052386 13 23103-KW0-010 Gear, (34T) - 1 - - - - 13 23103-KW0-720 Gear, (34T) - - 1 - - - 13 23103-MN8-000 Gear, (34T) - - - 1 - - ---------- 100225313 23103-MN8-010 Gear, (34T) - - - 1 - - 1002254 13 23103-MN8-010 Gear, (34T) - - - - 1 - 13) 23103-MN8-910 Gear, (34T) - - - - - 1 14 23311-413-000 Plate A, Clutch. 5 - - - - - 14 23311-413-000 Plate A, Clutch. - 5 - - - - ---------- 110225914 22321-MM9-000 Plate A, Clutch. - 5 - - - - 1102260 14 22321-MM9-000 Plate A, Clutch. - - 5 - - - 14 23311-200-000 Plate A, Clutch. - - - 7 - - 14 23311-200-000 Plate A, Clutch. - - - - 7 - ---------- 105044814 22321-MN8-000 Plate, Clutch. - - - - 7 - 1050449 14 22321-MN8-000 Plate, Clutch. - - - - - 7 15 30211-MN8-010 Rotor, pulser 1 1 - 1 1 - 15 30211-MN8-910 Rotor, pulser - - 1 - - 1 16 90007-MR1-000 Bolt, 6X30 4 4 4 4 4 4 17 90013-415-000 Bolt, USB, 12X28 1 1 1 1 1 1 18 90236-MN8-000 Nut, lock, 18MM 1 1 1 1 1 1 19 90402-PC6-000 Washer, 12.5X34X5 1 1 1 1 1 1 20 90432-MR1-000 Washer, 18MM 1 1 1 1 1 1 21 90452-471-000 Washer, 22MM 1 1 1 1 1 1 22 96100-60010-00 Bearing, 6001 1 1 1 1 1 1
|
